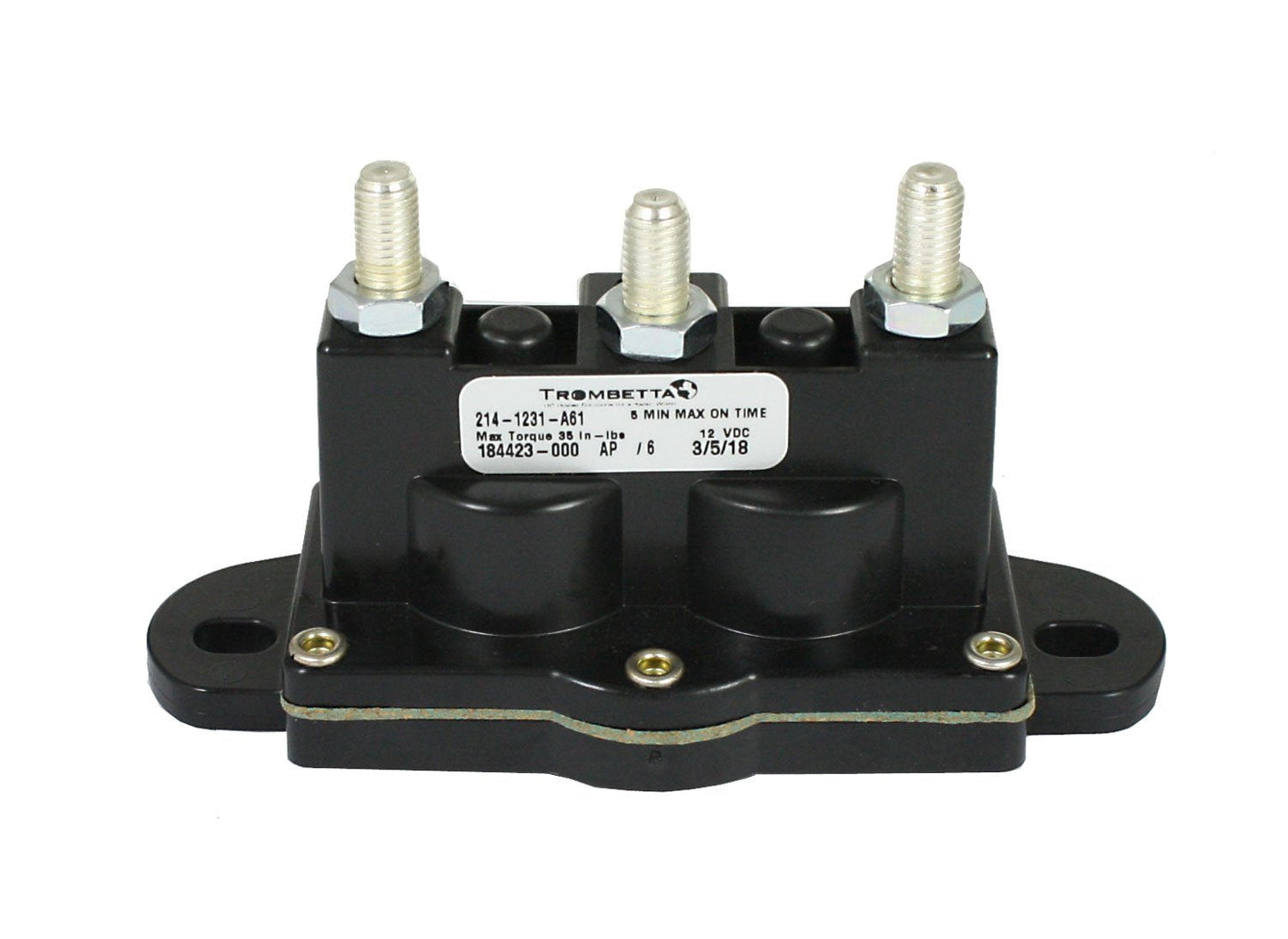

Trombetta 214-1231-A61 12 Volt Reversing Polarity DC Contactor

Trombetta Reversing Polarity Family: 12 Volt DC Contactor (214-1231-A61)

 By integrating two DC Contactors into a single housing unit, Trombetta has eliminated many costly materials and streamlined final product assembly and wire connection. Installation involves mounting a single contactor, then making six easy lead connections.
This model is popular in the Recreational Vehicle industry for service replacement use on slide-out hydraulic power units and hydraulic leveling systems, as this model reverses a permanent magnetic motor.

Features:

•  Coil Terminals: Two (2) grounded coils. Each coil has (1) 1/4" spade and a common 5/16-24 central ground
•  Duty Cycle: 20% sustained (2 min. max on time)
•  IMPORTANT: 2 minutes (120 seconds) “ON TIME” requires a MINIMUM of 2.5 minutes (150 seconds) OFF before energizing the coil again
•  IMPORTANT: 2-1/2 minutes (150 seconds) “ON TIME” requires a MINIMUM of 47.5 minutes OFF before energizing the coil again
•  Contact Material: Alloy Silver Contacts and Contact Bars
•  Voltage: 12 Volt
•  Molded Bracket
•  Seal is resistant to dust and liquid
