SQUARE D

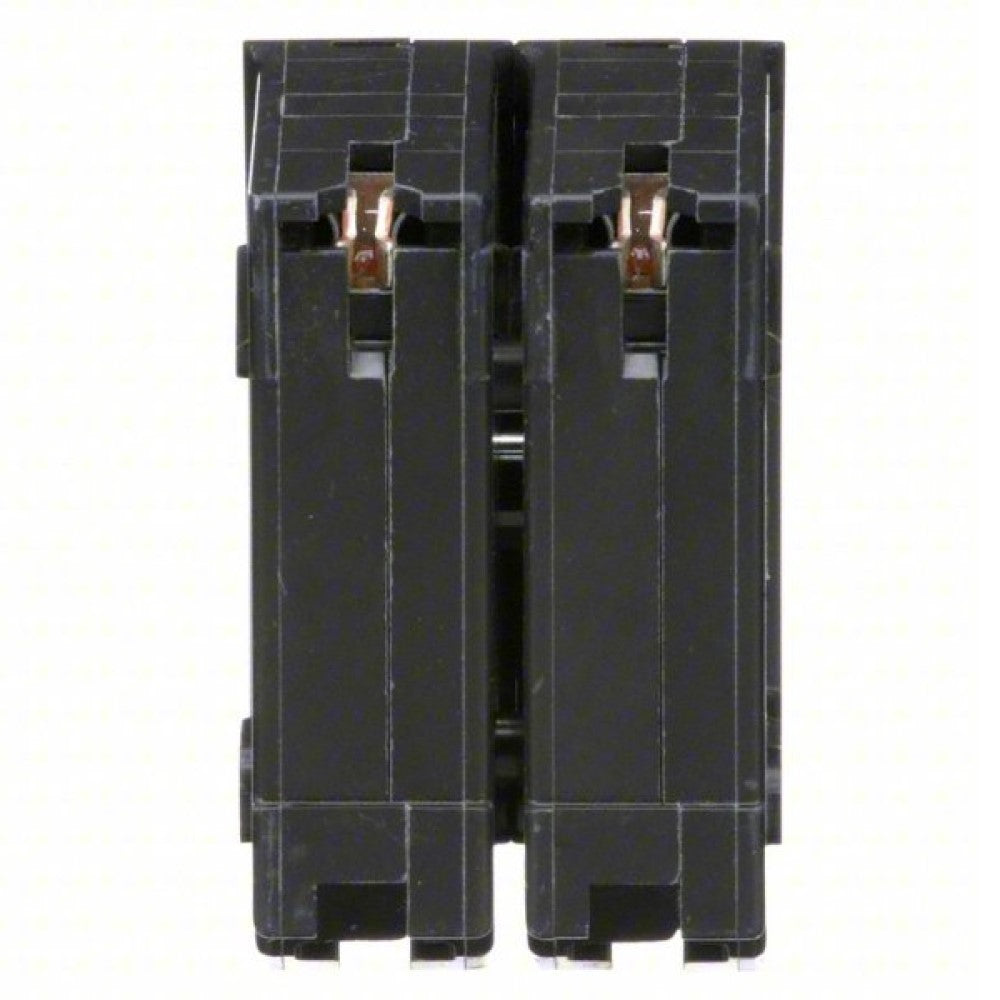

Square D 60 Amp Circuit Breaker HOM260 Homeline 2 Pole Plug In 60A, 120/240V, AC, Single Phase
Square D 60 Amp Circuit Breaker HOM260 Homeline 2 Pole Plug In 60A, 120/240V, AC, Single Phase
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
/
per
Square D 60 Amp Breaker HOM260 Homeline 2 Pole 60A, 120/240V AC, Single Phase, 10kA at 120/240V AC
Product Details:
Amps 60 A
AC Voltage Rating 120/240V AC
Circuit Breaker Type Standard
Number of Poles 2
DC Voltage Rating Not Rated
Circuit Breaker Actuator Paddle
Circuit Breaker Mounting Style Plug In
Compatible Panelboard/Load Center Series HOM
Phase Single
Max. AIR Rating 10kA at 120/240V AC
For Use With Homeline Load Center
Terminal Connection Lug
Frame Size100 A/HOM
Length 3.13 in
Width 2 in
Depth 2.98 in
Min. Operating Temp. 104 °F
Max. Operating Temp. 104 °F
Min. Wire Size 8 AWG
Max. Wire Size 2 AWG
Standards CSA Certified; HACR; UL Listed
Series HOM
Product Description:
The Square D Homeline 60 Amp Breaker 2 Pole Circuit Breaker by Schneider Electric is used for overload and short-circuit protection of your electrical system. This breaker is compatible with Homeline load centers and CSED devices. The ANSI-certified and UL-listed unit is rated for 120/240VAC and 10,000 AIR. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.
