SQUARE D

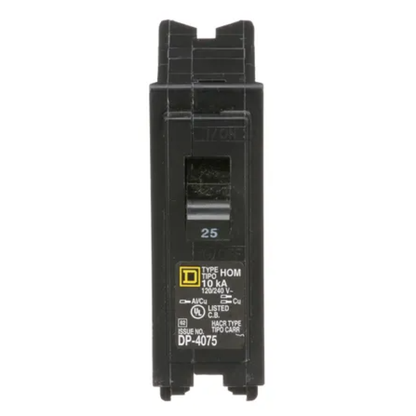

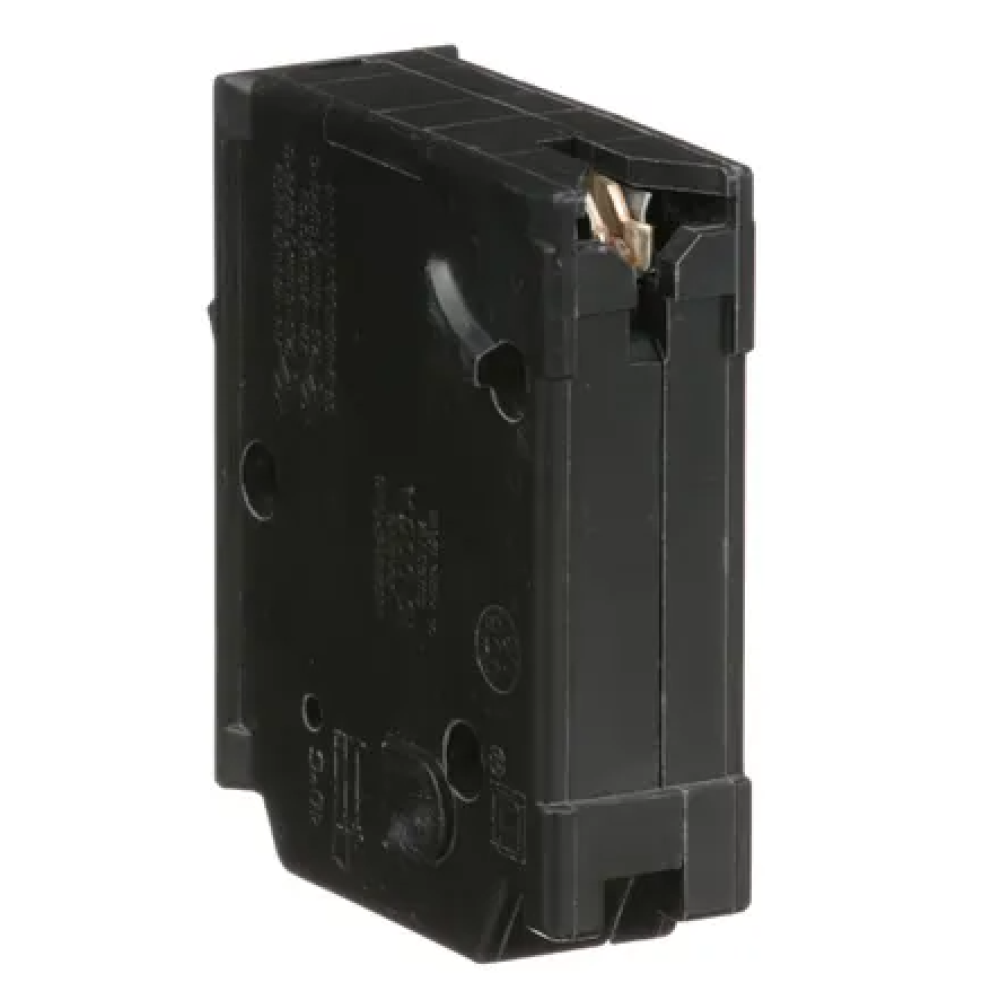

Square D HOM125 Homeline Single Pole Miniature Circuit Breaker (120V, 25A)
Square D HOM125 Homeline Single Pole Miniature Circuit Breaker (120V, 25A)
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
The Square D Homeline 25 Amp Single Pole Circuit Breaker by Schneider Electric is used for overload and short-circuit protection of your electrical system. This breaker is compatible with Homeline load centers and CSED devices. The ANSI-certified and UL-listed unit is rated for 120 and 10,000 AIR. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.
Specifications
- Product: Miniature circuit breaker
- Range: Homeline
- Current Rating: 25A
- Certifications: UL listed
- Voltage Rating: 120
- Mounting Type: Plug-in
- Number of Poles: 1P
- Short Circuit Current Rating: 10 kA
- Number of Spaces: 1
- Circuit Breaker Type: Standard
- Ratings: HACR rated
- Electrical Connection: Clamp terminal for 2 cables
- Wire Size: AWG 14...AWG 8 aluminium/copper)1 / AWG 14...AWG 8 aluminium/copper)1
- Ambient air temperature for operation: 104 °F (40 °C)
- 10,000 AIR
