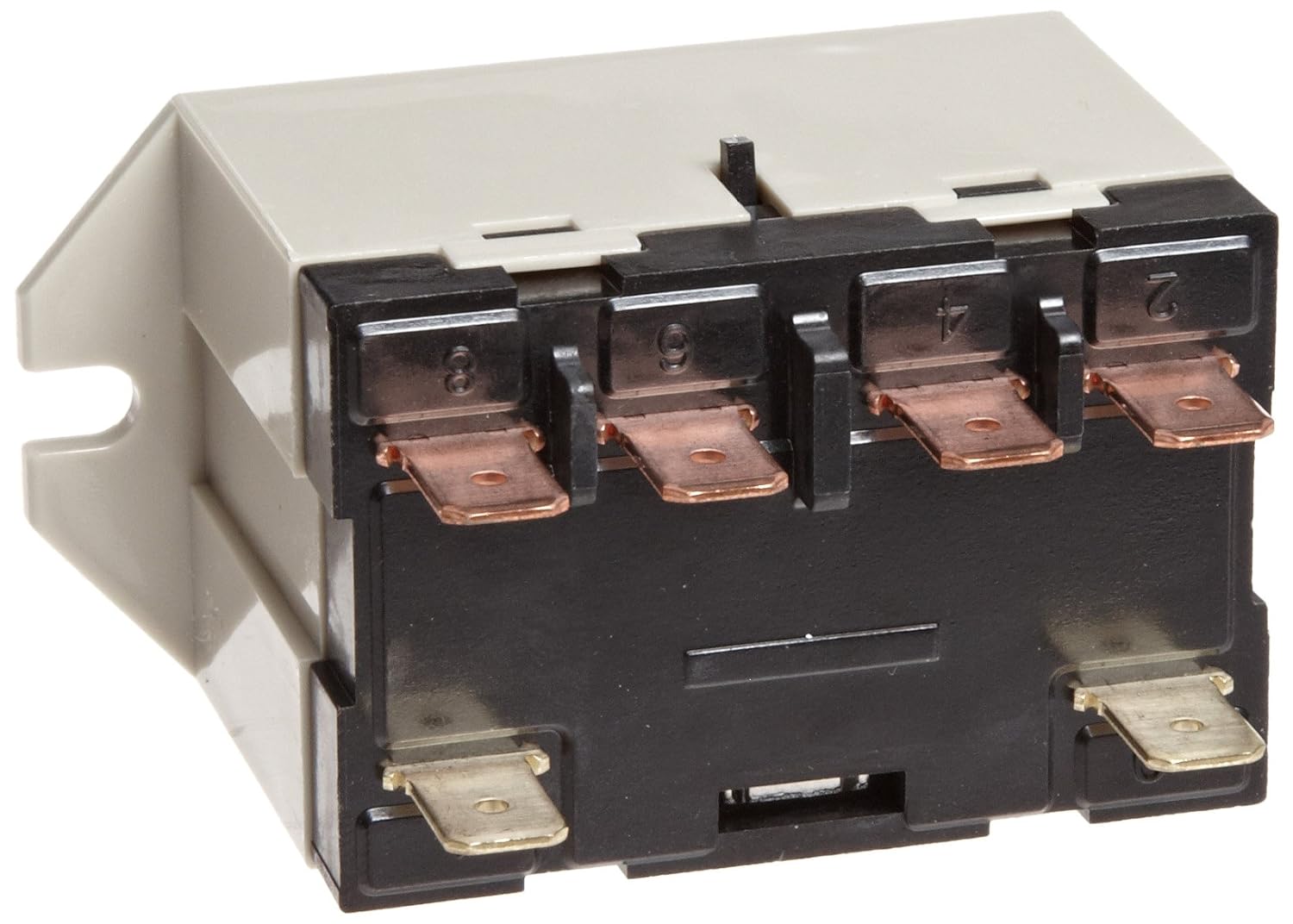

Omron G7L-2A-TUB-J-CB-AC100/120 General Purpose Relay With Test Button, Class B Insulation, QuickConnect Terminal

Panel Mount type switches 30A 1FormA and 25A 2FormA Resistive at 220VAC while PCB type switches 20A 1FormA and 2FormA Resistive at 220VAC
100/120VAC Coil activates between 100 to 120 VAC at either 50 or 60 Hz
No contact chattering for mometary voltage drops up to 50 percent of rated voltage
UL rated 3HP 240/277 VAC 100K cycles and Ballast rating of 20A 277VAC 10K cycles
Flame-resistant materials (UL94V-0) used for all insulation
Standard models are UL, CSA, and TUV approved (VDE versions available)
Available in Screw, Quick Connect, and PCB Terminals
Conforms to IEC 950

Product Attribute                          Attribute Value

Alternate Mfr Part Number              G7L2ATUBJCBAC100120
Coil Resistance                                 303 Ohms
Coil Voltage                                      110 ; 115 ; 120 ; 125 VAC ; VAC ; VAC ; VAC
Contact Current Rating                     25 A
Contact Form                                    DPST-NO
Contact Material                               Silver Alloy
Contact Resistance                            50 mOhms
Contact Voltage Rating                    300 VAC
Control Voltage                                 110 V
Current Rating                                   25 A
Dielectric Rating                                5000 VAC (Typ.) bits
Dimensions                                        2.696 L x 1.318 W x 1.85 D
Function                                             Monostable
Mounting Type                                  Panel Mount
Power Rating                                     5500 VA
Primary Type                                     Power Relays
Relay Type                                         General Purpose
Series                                                 G7L Series
Special Features                                Test Button
Standards                                           UL ; CSA ; CE
Termination                                       QC Tabs
Voltage Rating                                   250 V
