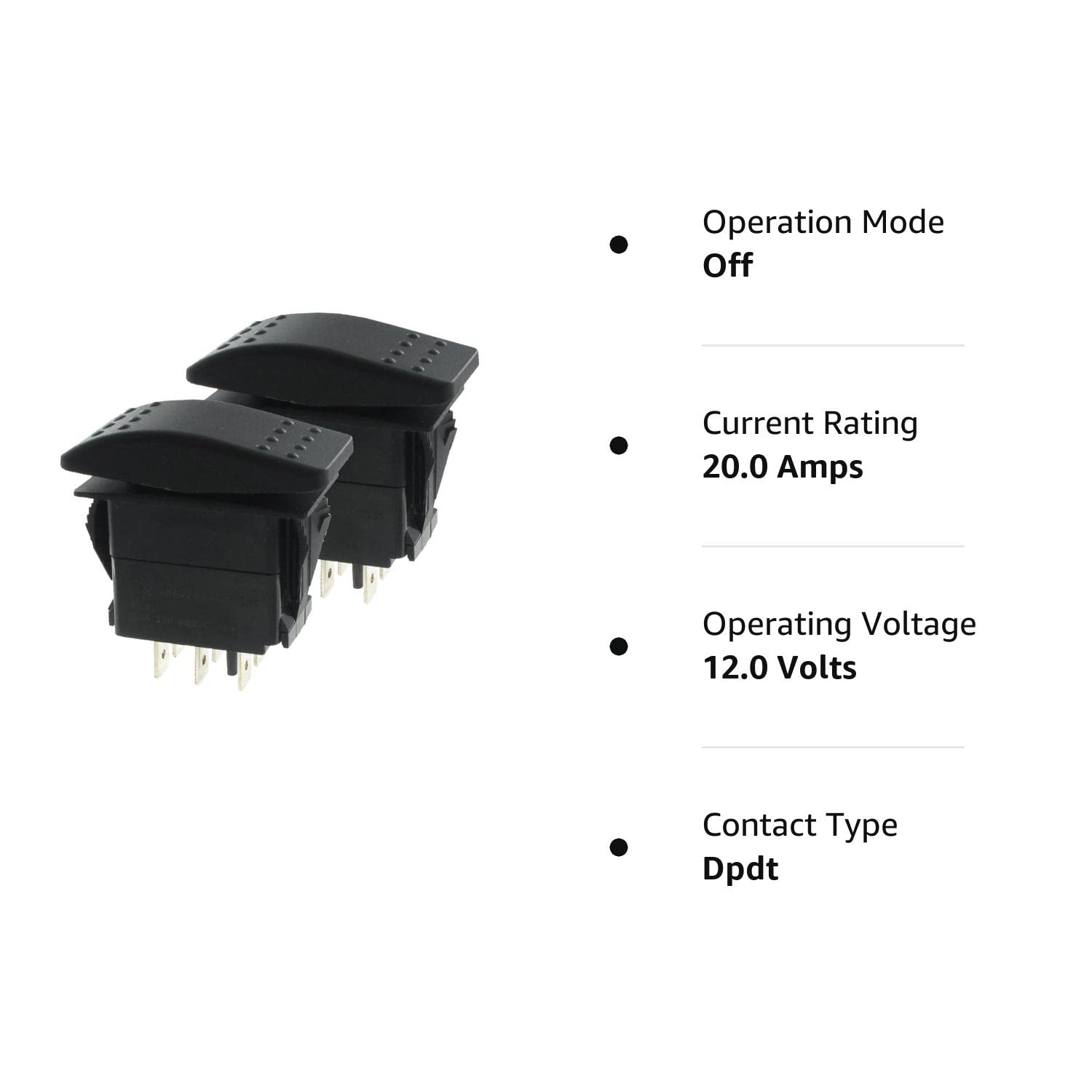

Carling Technologies VLD1S00B-AZC00-000 (2-Pack)

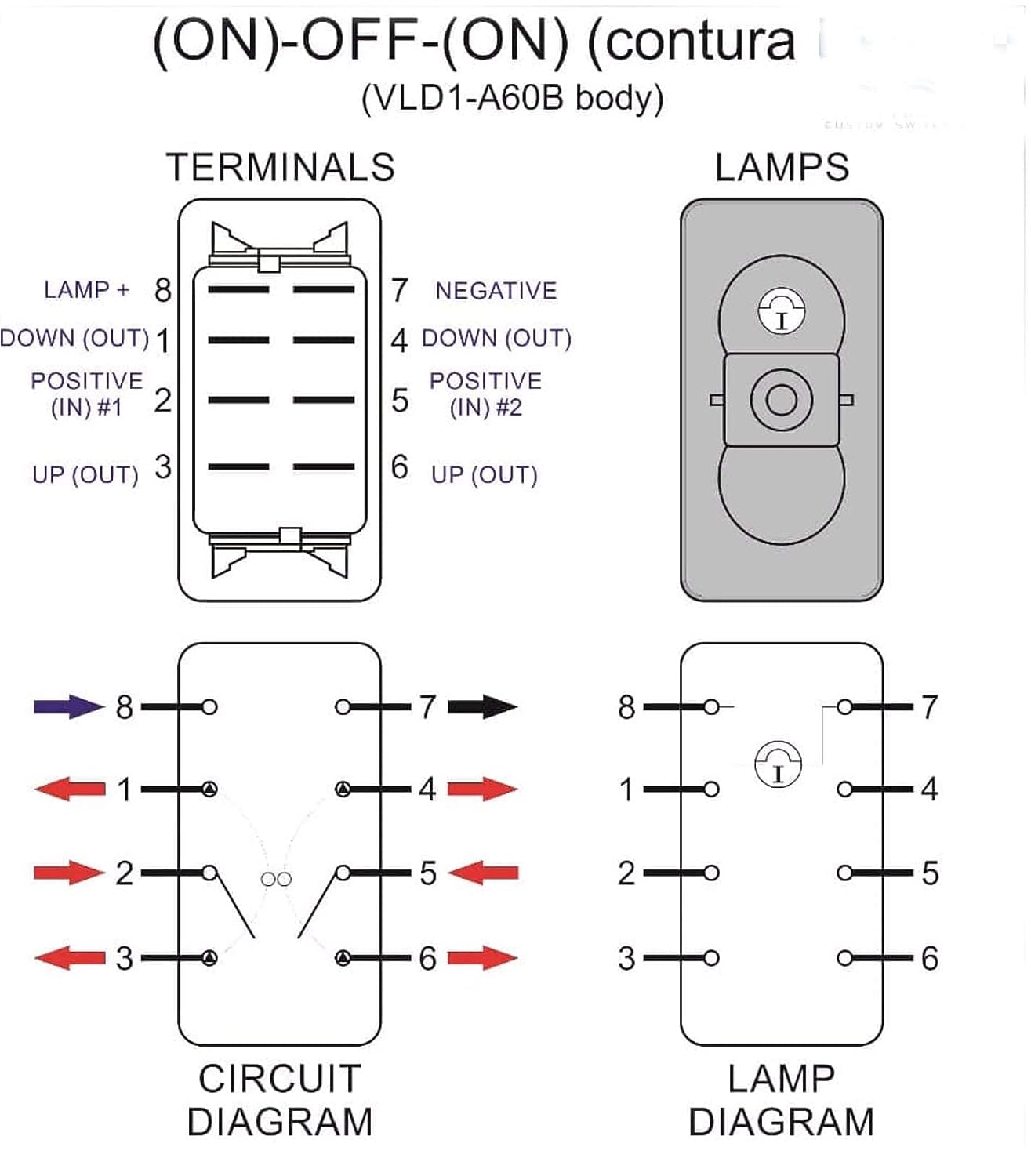

Switch Rocker (ON) OFF (ON) DPDT Quick Connect Rocker 20A 12VDC 150000Cycles Automotive
Description:

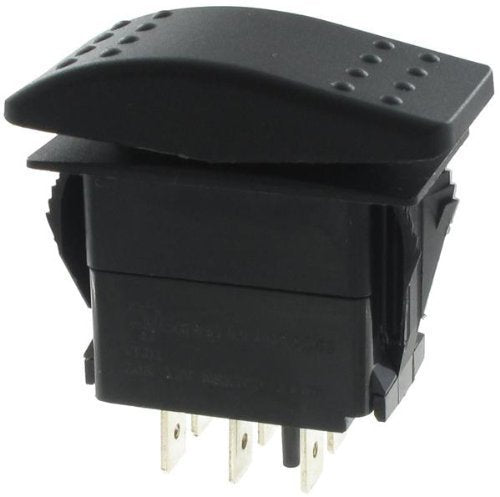

The Carling Technologies VLD1S00B-AZC00-000 is a high-quality and durable rocker switch designed for automotive applications. It features a DPDT (Double Pole Double Throw) configuration with an (ON) OFF (ON) function, allowing for versatile and convenient operation.This heavy-duty rocker switch has a quick connect terminal for easy and secure installation. It can handle a maximum current of 20A and operates at a voltage of 12VDC. With a lifespan of 150,000 cycles, this switch is built to withstand frequent use and provide long-lasting performance in automotive environments.The CARLING TECHNOLOGIES VLD1S00B-AZC00-000 is available in bulk quantities, making it an ideal choice for manufacturers, repair shops, and automotive enthusiasts. Upgrade your vehicle's electrical system with this reliable and efficient rocker switch.
Specifications:
- Pole Throw Configuration: DPDT
- Mounting Style: Panel
- Operating Temp Range: -40C to 85C

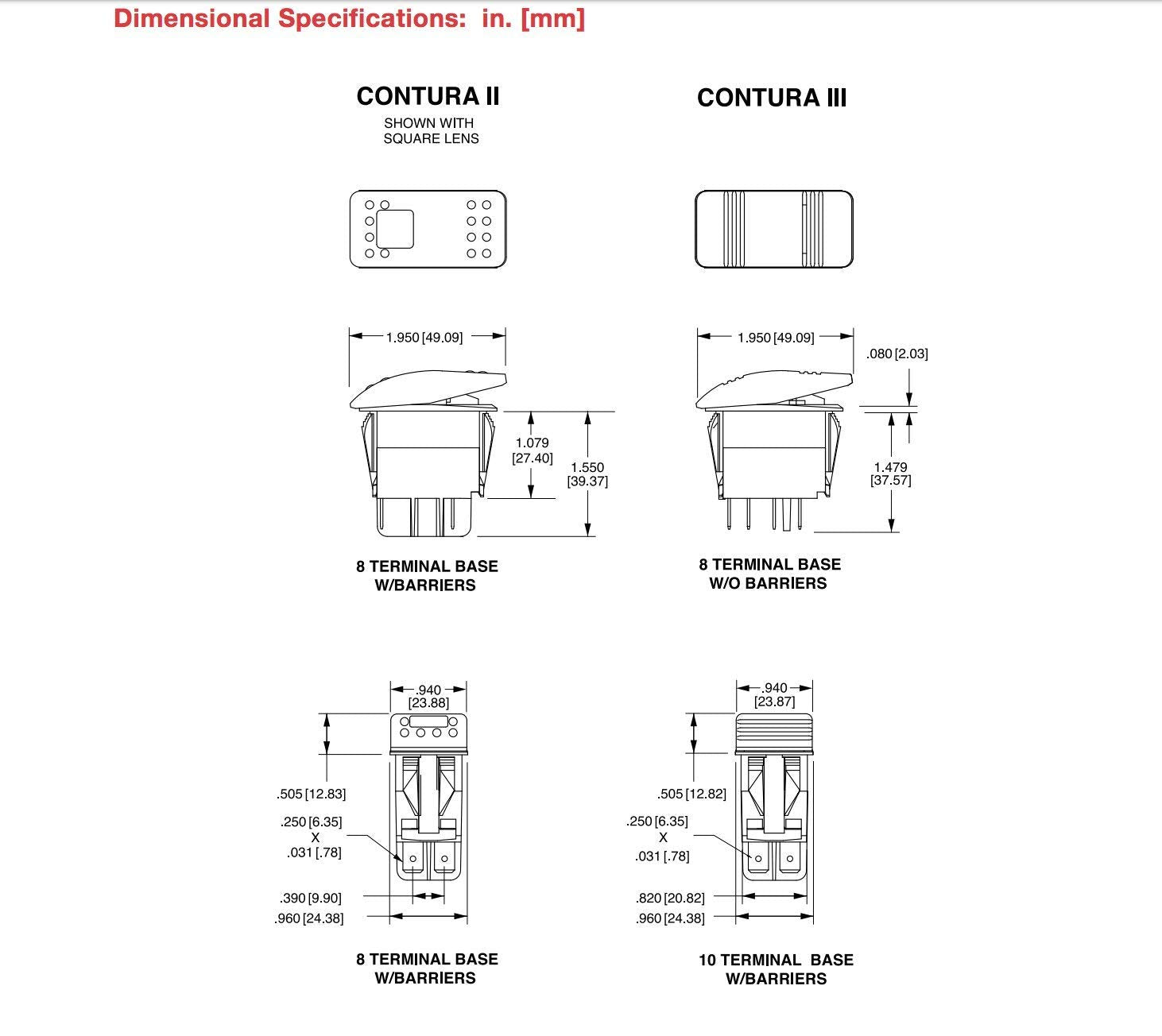

- Product Length (mm): 49.09(mm)
- Operating Temperature Max Deg. C: 85C
- Operating Temperature Min Deg. C: -40C
- Product Depth (mm): 24.38(mm)
- Actuator Style: Rocker

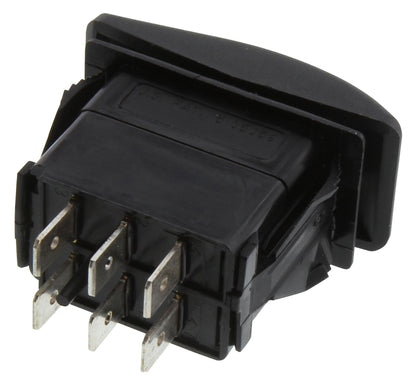

- Terminal Type: Quick Connect
- Illumination Type: Not Required
- Product Height (mm): 50.4(mm)
- Switch Configuration: ON OFF ON
- Mechanical Life: 150000
- DC Voltage Rating (Max): 12
- Current Rating (Max): 20@12VDC(A)
