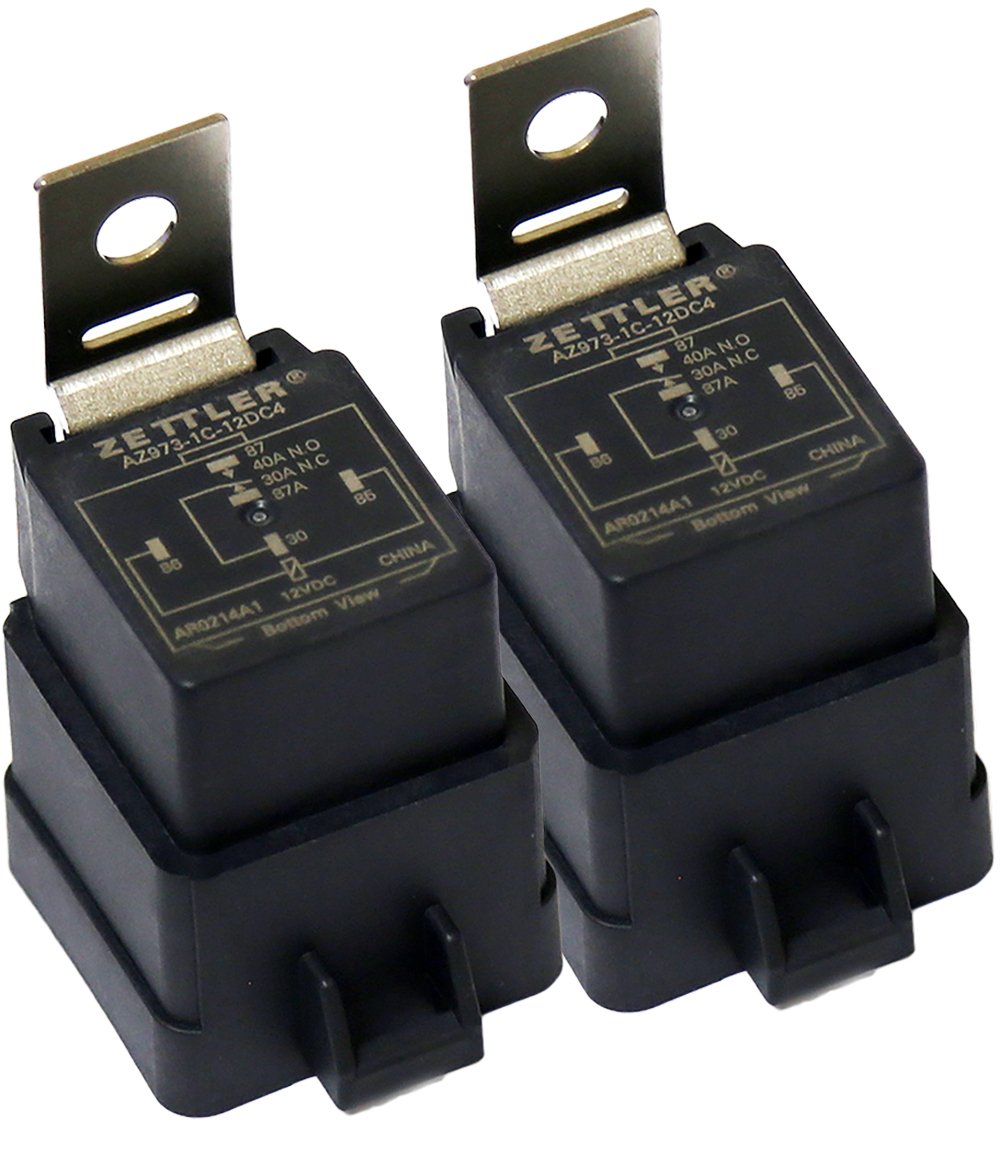

American Zettler AZ9731-1C-12DC4 (2-Pack) Power Trim Tilt Relay for Mercury Outboard Motor

American Zettler AZ9731-1C-12DC4 (2-Pack) Power Trim Tilt Relay for Mercury Outboard Motor

Regular price $19.99
Regular price Sale price $19.99
Sale Sold out

AMERICAN ZETTLER AZ9731-1C-12DC4 40AMP Mini-ISO Automotive Relay 12VDC coil SPDT - 2 Pack


FEATURES:

• Quick connect terminals
• 40 Amp contact rating
• High operating temperature (125°C)
• Epoxy sealed versions available
• Plastic or steel mounting bracket available
• Resistor or diode parallel to coil available
• ISO/TS 16949, ISO14001

DESCRIPTION:

The AMERICAN ZETTLER part AZ9731-1C-12DC4 is a high-quality automotive relay designed for various applications. With a 40AMP capacity, it is capable of handling heavy loads with ease. The relay features a 12VDC coil, ensuring compatibility with most automotive electrical systems. Its single-pole, double-throw (SPDT) configuration provides versatility for different wiring needs. Compact in size, this mini-ISO relay is space-saving and easy to install. Whether you need it for automotive, industrial, or other demanding applications, the AZ9731-1C-12DC4 relay offers reliable performance and durability you can trust.

SPECIFICATIONS:

  • Supplier:  American Zettler
  • Contact Form:  SPDT (1 Form C)
  • Relay Construction:  Non-Latching
  • Max Contact Current:  40A (NO) / 30A (NC)
  • Coil Voltage:  12 VDC
  • Coil Current:  33 mA
  • Coil Resistance:  90 Ohm
  • Contact Material:  Silver Tin Oxide
  • Must Operate Voltage:  8 VDC
  • Must Release Voltage:  1.8 VDC
  • Operate Time:  7 ms
  • Seal:  Sealed
  • Mounting:  Bracket Mount

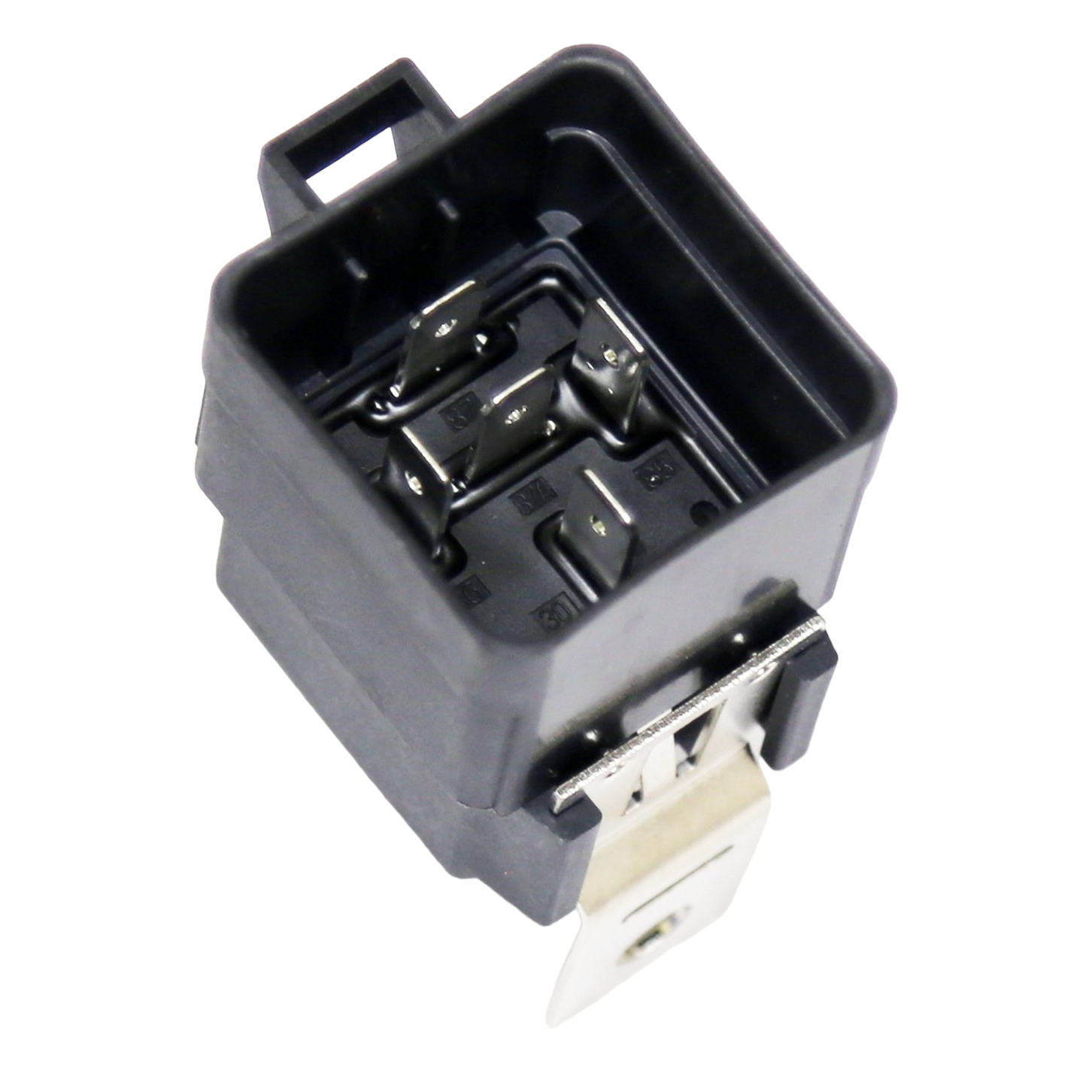

  • Termination Style:  Quick Connect
  • Dimension:  5 x 46.5 x 67.3 mm
  • Operating Temperature:  -40 to 125 °C
